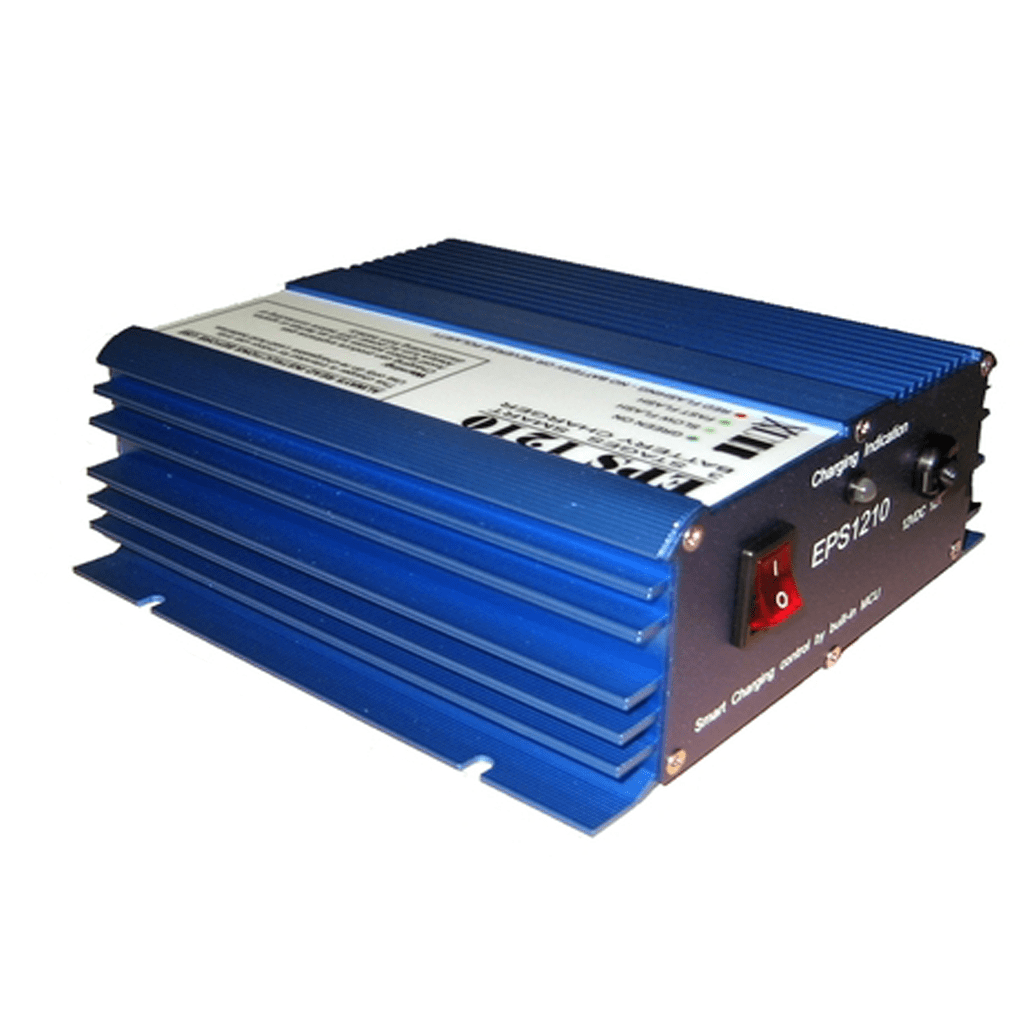

12 Volt 10 Amp Switch Mode 5 Stage Battery Charger
GENERAL FEATURES
Universal AC input
RoHS compliance
2 – year warranty
IP54 protection for damp environment
Overvoltage protection
Convection cooled
Overcurrent protection
Short circuit protection
6-stage charging control
Reverse polarity protection
Note:
Line regulation is measured from low line to high line at rated load. Load regulation is measured from 20% to 100% of rated load at 230VAC input. Efficiency is measured at rated load and 230VAC input.
EMC: EN 55011 Class B EN 55022 Class B EN 61000-4-2 Level 3 EN 61000-4-3 Level 3 EN 61000-4-4 Level 3 EN 61000-4-5 Level 3 EN 61000-4-6 Level 3 EN 61000-4-8 Level 3 EN 61000-4-11 Level 3
Standard: EN 60950 (Meet), UL 60950 (Meet), CSA 22.2 (Meet)
Input Connection: 3 Core SAA Cable IEC
MECHANICAL
Case Dimension: 155L X 153W X 59H Casing Material: Extruded Anodized Aluminum Weight: 1.5 Kg. Cooling: Convection Cooled Warranty: 12 Months
ELECTRICAL
Topology: Switching DC Power Efficiency: 84% Boost Charge Voltage: 14.7VDC Float Charge Voltage: 13.8VDC Output Charge Current: 10Amps Line Regulation: +/- 1% Over Input Range Load regulation: +/- 1% Over Voltage Protection: 15~17VDC
ENVIRONMENTAL
Operating Temp. Range: -20 degrees Celsius ~ 40 degrees Celsius ambient, derating each output at 2.5% per degree from 40 degrees Celsiusto 60 degrees Celsius
