EPS 2407S

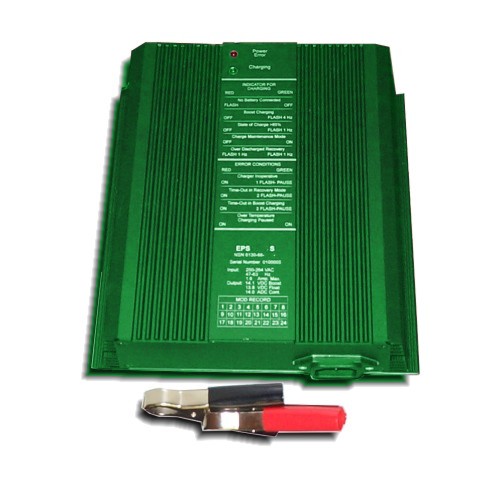

Single 200 watt output 24 volt battery charger fitted with battery clips and IEC power cord

FEATURES
Micro controlled 5- step charging cycle
Conventional cooled
Great Reliability, over temperature and overload protected
100% burn-in test
Design to meet the requirements of UL 1012
Design to meet the requirements of EN 55022 noise level
IEC inlet socket with built-in line filter
1 years warranty
Reverse polarity protection
GENERAL SPECIFICATIONS
Input Voltage: 240VAC + 15%
Input Frequency: 47-63 Hz
Inrush Current (cold): 50A/240VAC
Operation Temperature: 0 Degrees Celsius – 50 Degrees Celsius
Storage Temperature: -20 Degrees Celsius – +85 Degrees Celsius
Short Protection: Relay open
Battery disconnect: Relay open
Overload Protection: Secondary current and primary power limited
5 – Steps Automatic Charging cycle controlled by micro controller.
OUTPUT SPECIFICATIONS
Boost Voltage: 28.2VDC
Float Voltage: 27.6VDC
Rated output Current: 7A
Load (current)
Min: 0.05A
Rated: 7.00A
Max: 7.20 A
Ripple & Noise: 100mVp-p
Line Regulation: +/-0.5%
Load Regulation: +/-0.1%
Efficiency: 86%
MECHANICAL DETAILS
Case Dimension: 210L X 205W X 60H (mm)
Casing Material: Aluminium
Colour: Green
Weight: 2 kg.
· Connect the charger to the batteries to be charged observing the following colour coded wiring connections.
