ELECTRONIC POWER SYSTEMS PTY. LTD.

1214S

EPS 1214S

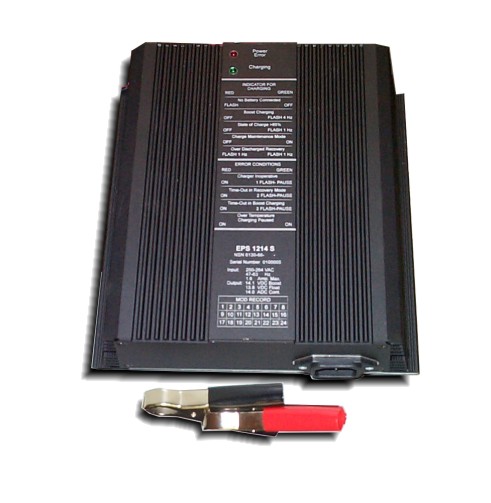

Single 200 watt output 12 volt battery charger fitted with battery clips and IEC power cord

FEATURES

Micro controlled 5- step charging cycle

Conventional cooled

Great Reliability, over temperature and overload protected

100% burn-in test

Design to meet the requirements of UL 1012

Design to meet the requirements of EN 55022 noise level

IEC inlet socket with built-in line filter
1 years warranty

Reverse polarity protection

GENERAL SPECIFICATIONS

Input Voltage:                                200-240VAC + 15%
Input Frequency:                         47-63 Hz
Inrush Current (cold):               30A/240VAC
Operation Temperature:         0 Degrees Celsius – 50 Degrees Celsius
Storage Temperature:                -20 Degrees Celsius – +85 Degrees Celsius
Short Protection:                          Relay open
Battery disconnect:                     Relay open
Overload Protection:                 Secondary current and primary power limited
5 – Steps Automatic Charging cycle controlled by micro controller.



OUTPUT SPECIFICATIONS

Boost Voltage:                      14.4VDC
Float Voltage:                        13.8VDC
Rated output Current:     14.0

Load (current)
Min:                                   0.05A
Rated:                              14.00A
Max:                                  14.00 A
Ripple & Noise:           100mVp-p
Line Regulation:         +/-0.1%
Load Regulation:        +/-0.1%
Efficiency:                       82%

MECHANICAL DETAILS

Case Dimension:          210L X 205W X 60H (mm)
Casing Material:           Aluminium
Colour:                               Black
Weight:                              2 kg.
